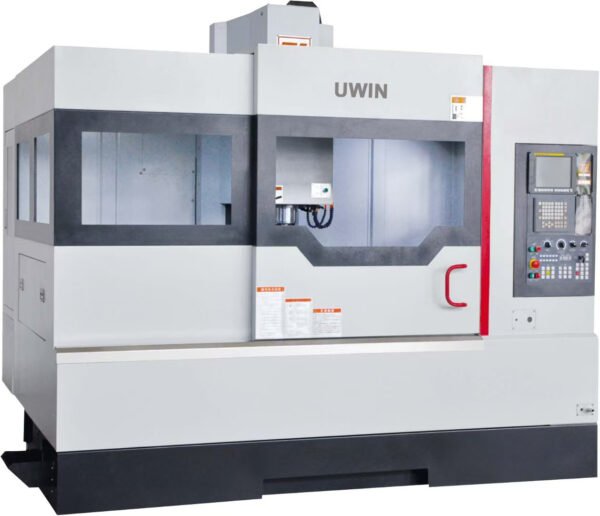

CNC Machining Center TL1160

Category CNC Machining Center

Additional information

Product Feature

Allows access from three sides, facilitating emergency maintenance and servicing of the tool magazine
Casting parts of HT250 and above undergo natural aging to eliminate stress to the greatest extent, ensuring the stability of the castings
Excellent machining visibility ensures the safe setup of the machine tool
Side-mounted high-capacity disc tool magazine enables uninterrupted machining, reducing non-productive time and enhancing production efficiency
Excellent machining visibility ensures the safe setup of the machine tool

Item	Unit	TL1160
Work Travel
X/Y/Z Triaxial Travel	mm	1100/650/600
Distrance From The Nose of spindle to Work Table	mm	110~750
Distance Between Center of Spindle and Guide Surface of Z Axis	mm	750
Axial
X/Y/Z Rapid Movement Speed	mm/min	36000
Cutting Feed	mm	500
Work Table
Table Size	mm	1200 X 600
Maximum Working Load	kgs	800
T Groove Width X Groove Number X Spacing		18 X 5 X 100
Direct Spindle
Spindle Speed	rpm	8000
Spindle Diameter	mm	150
Main Shaft Taper		BT40
Spindle Power	kW	18.5
Tool Magzine
Knife Number	T	24
Maximum Prop Weight	kg	7
Knives Exchange Time	s	2
Machine Accuracy
Posistioning Accuracy	mm	±0.005/300
Repeatable Positioning Accuracy	mm	±0.003
Other Information
Machine Weight	kgs	7800
Maximum Mechanical Height	mm	2800
Machine Size	mm	3100 X 2400
Power Demand	kva	15
Air Pressure Requirement	kg/f/cm	6
