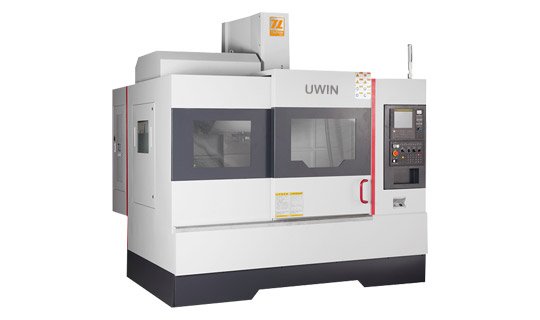

CNC Machining Center EV Series

Category CNC Machining Center

Additional information

Product Feature

Allows access from three sides, facilitating emergency maintenance and servicing of the tool magazine
Casting parts of HT250 and above undergo natural aging to eliminate stress to the greatest extent, ensuring the stability of the castings
Excellent machining visibility ensures the safe setup of the machine tool
Side-mounted high-capacity disc tool magazine enables uninterrupted machining, reducing non-productive time and enhancing production efficiency
Excellent machining visibility ensures the safe setup of the machine tool

Item	Unit	EV-600	EV-800	EV-1060	EV-1167	EV-1370
X/Y/Z Triaxial Travel	mm	600/400/450	800/500/550	1000/600/600	1100/600/700	1300/700/700
Distance From The Nose of Spindle to The Work Table	mm	135~585	120~670	150~750	120~720	120~820
Distance Between Center of Spindle and Guide Surface of Z Axis	mm	488	550	655	660	770
Axial
X/Y/Z Rapid Movement Speed	mm/min	48000	48000	36000	36000	30000
Work Table
Table Size	mm	700 X 400	1000 X 500	1100 X 600	1200 X 600	1400 X 700
Maximum Working Load	kgs	350	450	500	600	1000
T Groove Width X Groove Number X Spacing		14 X 3 X 125	18 X 5 X 80	18 X 5 X 100	18 X5 X100	18 X 5 X 125
Spindle
Spindle Speed	rpm	12000	12000	12000	12000	10000
Spindle Diameter	mm	120	140	150	150	150
Main Shaft Taper		BT40	BT40	BT40	BT40	BT40
Spindle Power	kW	7.5	11	15	15	15
Tool Magzine
Tool Number	T	24	24	24	24	24
Maximum Prop Weight	kgs	7	7	7	7	7
Knives Exchange Time	s	7.5	11	15	15	15
Machine Accuracy
Positioning Accuracy	mm	±0.005	±0.005	±0.005	±0.005	±0.005
Repeatable Positioning Accuracy	mm	±0.003	±0.003	±0.003	±0.003	±0.003
Other Information
Machine Weight	kgs	4500	5500	6300	6500	8500
Maximum Mechanical Height	mm	2400	2400	2400	2700	3000
Machine Size	mm	1800 X 2750	2500 X 2150	2700 X 2300	2900 X 2400	3300 X 2700
Power Demand	kva	15	15	15	15	15
Air Pressure Requirement	kg/f/cm	6	6	6	6	6.5
