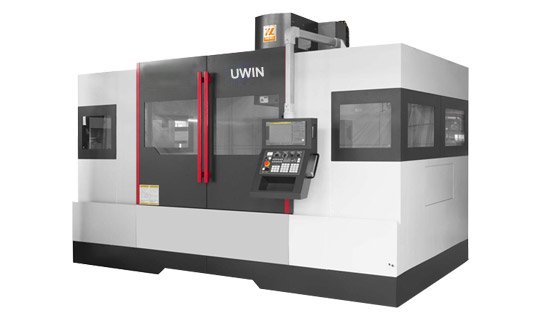

CNC Machining Center TL Series

Category CNC Machining Center

Additional information

Product Feature

All main parts are made of high grade cast iron HT250 or above
Three-axis precision linear sliding rail, high precision and fast
Three-axis motor and high precision ball screw adopt direct transmission with high accuracy
Internal spindle, high precision, high ragidity, high power, ultra-quiet, vibration resistance

Item	Unit	TL1370	TL1580	TL1680	TL1890
Work Travel
X/Y/Z Triaxial Travel	mm	1300/700/700	1500/800/700	1600/800/700	1800/900/800
Distrance From The Nose of spindle to Work Table	mm	120~800	120~830	120~830	150~840
Distance Between Center of Spindle and Guide Surface of Z Axis	mm	750	830	830	950
Axial
X/Y/Z Rapid Movement Speed	mm/min	24000	24000	24000	24000
Cutting Feed	mm	500	500	500	500
Work Table
Table Size	mm	1400 X 700	1700 X 800	1700 X 800	2000 X 900
Maximum Working Load	kgs	1200	1700	1700	2000
T Groove Width X Groove Number X Spacing		5 X 8 X 125	22 X 5 X 140	22 X 5 X 140	22 X 5 X 165
Direct Spindle
Spindle Speed	rpm	6000	6000	6000	6000
Spindle Diameter	mm	155	155	190	190
Main Shaft Taper		BT50	BT50	BT50	BT50
Spindle Power	kW	18.5	18.5	18.5	18.5
Tool Magzine
Knife Number	T	24	24	24	24
Maximum Prop Weight	kg	9	9	9	9
Knives Exchange Time	s	3.5	3.5	3.5	3.5
Machine Accuracy
Posistioning Accuracy	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repeatable Positioning Accuracy	mm	±0.003	±0.003	±0.003	±0.003
Other Information
Machine Weight	kgs	12000	13800	14000	14500
Maximum Mechanical Height	mm	3200	3200	3200	3200
Machine Size	mm	4300 X 3300	4300 X 3300	4300 X 3300	5000 X 3800
Power Demand	kva	15	15	15	15
Air Pressure Requirement	kg/f/cm	6	6	6	6
