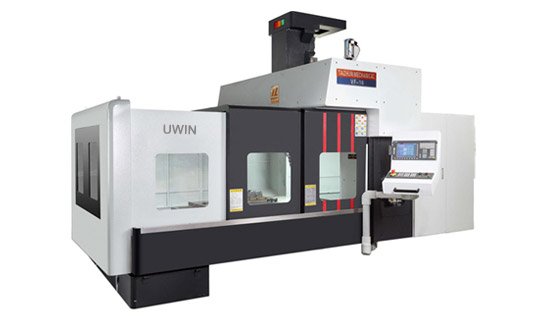

CNC Gantry Machining Center VF Series

Category CNC Gantry Machining Center

Additional information

Product Feature

X-Axis Travel: 2,000~8,000mm
Two Tracks On The Base (X-Axis): M55 roller type track
Two Tracks On The Y-Axis: M55 roller type, with two sliders per track
Z-Axis Hard Rail: Z-Axis optional track, M45 roller type, four tracks with two sliders
Stepped Crossbeam: Arch bridge structure

Item	Unit	VF 1200E	VF 1500E	VF 1613E	VF 2500	VF 2600
X-Triaxial Travel	mm	1200	1500	1500	2500	2600
Y-Triaxial Travel	mm	1000	1000	1400	1500	2000
Z-Triaxial Travel	mm	500	500	750	760	900
Distance From The Nose of The Spindle To The Work Table	mm	200-800	200-800	330-1080	200-960	150-1200
Gantry Width		1000	1000	1500	1500	2000
Workbench
Table Size	mm	1250 X 900	1550 X 900	1800 X 1400	2700 X 1300	2700 X 1700
Maximum Working Load	T	2	2.5	4.5	6	7
T Groove Width X Groove Number X Spacing		5 X 18 X 165	5 X 18 X 165	8 X 22 X 160	8 X 22 X 160	28 X9 X 220
Direct Spindle
Spindle Speed	rpm	15000-24000	15000-24000	20000	15000	15000-20000
Transmission Way
Triaxial Transmission		Direct Type	Direct Type	Direct Type	Direct Type
Feed Speed
Cutting Speed	mm/min	15	15	8	8	10
Maximum Prop Weight	m/min	8	8	15	15	15
Knives Exchange	mm	X:40 Y:40 Z:40	X:50 Y:40 Z:40	X:63 Y:50 Z:50	X:63 Y:50 Z:50	X:63 Y:50 Z:50
Motor Power
Spindle Motor	kW	11	11	22	11	15
Other Information
Machine Weight	T	11	12	24	24	25
